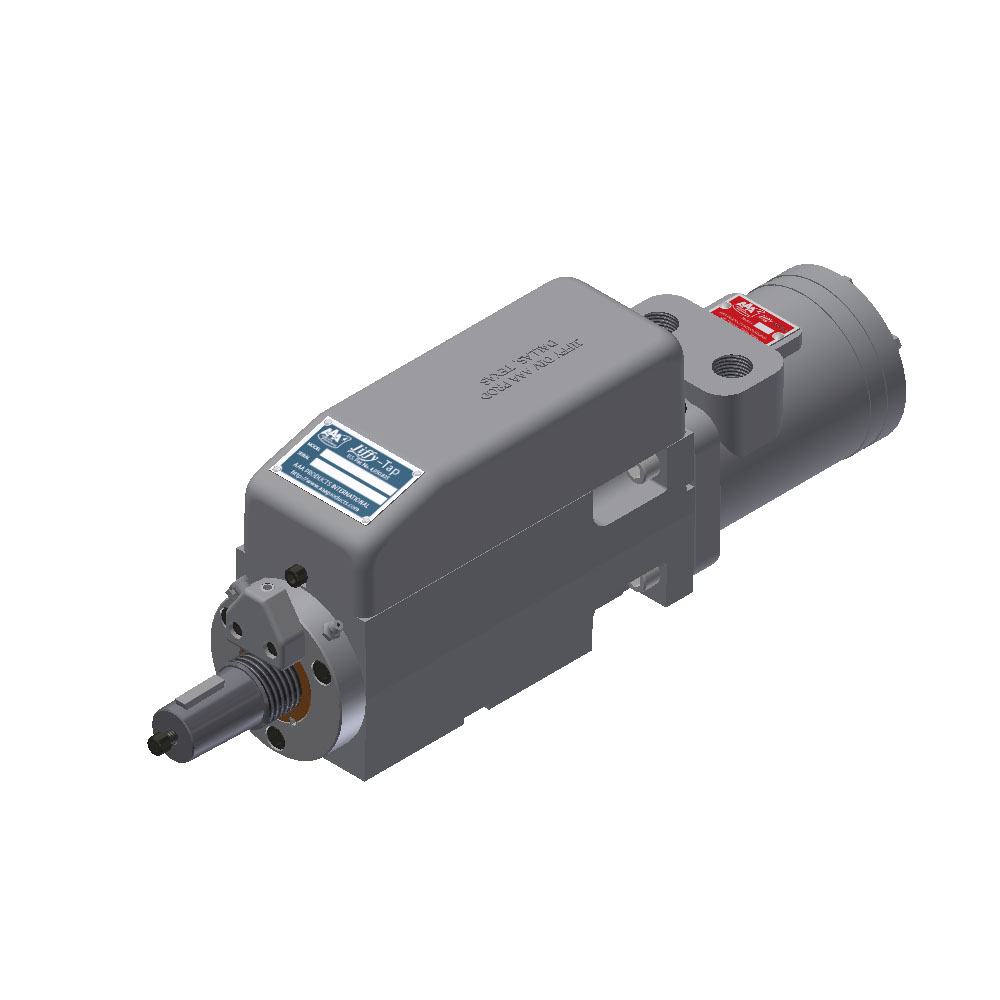

Jiffy Tap
Jiffy-Tap is the light, compact, and powerful answer to
production lead screw tapping or die threading in close quarters.
It will easily drive taps up through 1-1/2" N.C. size in
medium cast iron with ample allowance for dull taps. Using
a hydraulic motor to rotate the spindle, the standard unit will
produce more than 10 HP, yet is so compact that two units
will mount side-by-side on 3-5/16" spacing. On special
orders this can be reduced to 3-3/16". The maximum length
from end of motor to end of tap chuck is less than 20". No
other tapping unit can deliver the long life and high torque of
the Jiffy-Tap in such a small frame.
Select A Drive Style
Selected
Not Availible
| Tap Pitches | |
|---|---|
| 6 | 6 threads per inch |
| 7 | 7 threads per inch |
| 8 | 8 threads per inch |
| 10 | 10 threads per inch |
| 11 | 11 threads per inch |
| 11.5 | 11 1/2 threads per inch |
| 12 | 12 threads per inch |
| 13 | 13 threads per inch |
| 14 | 14 threads per inch |
| 16 | 16 threads per inch |
| 18 | 18 threads per inch |
| 20 | 20 threads per inch |
| 24 | 24 threads per inch |
| 27 | 27 threads per inch |
| 28 | 28 threads per inch |
| 32 | 32 threads per inch |
| 40 | 40 threads per inch |
| PITCH | Non-standard pitch |
| Tap Options | |
|---|---|
| ES | Extended Stroke lead screw |
| MQ | Motor Quick Change |
| SQ | Lead screw quick change |
| EP | 8 pin male plug with 12 ft. cable |
| PT | 8 pin male plug only |
| PX | Proximity switch (coolant resistant sensors) |
| RO | Automatic reverse sensor for missed holes |
