Mounting - Bottom Port Connections
Subplated valves require a mounting base. This mounting base is pre-plumbed to existing control lines. Due to the nature of the plumbing lines fixed to a mounting base, replacing subplate mounted valves is rapid and quick. All port connections, excluding "External Pilot" or "Pilot Return" ports, if used, are made through O-ring sealed holes in the base of the valve through a subplate. O-ring seals and mounting screws are furnished with each subplate valve. Because the connections to a base mount can be of any size and configuration, subplate mounted valves are assigned a designation derived from a basic valve body size. A 3P size subplate valve will have the same flow characteristics as a 3/8" NPTF side ported valve body. Consult factory on the possibility of routing external pilot or pilot return sources through the subplate.
![BP3-1E](https://files.aaaproducts.com/pages/images/BP3-1E.jpg)
![BP3-1E](https://files.aaaproducts.com/pages/images/BP3-1E_BTM.jpg)
3/8" Subplate

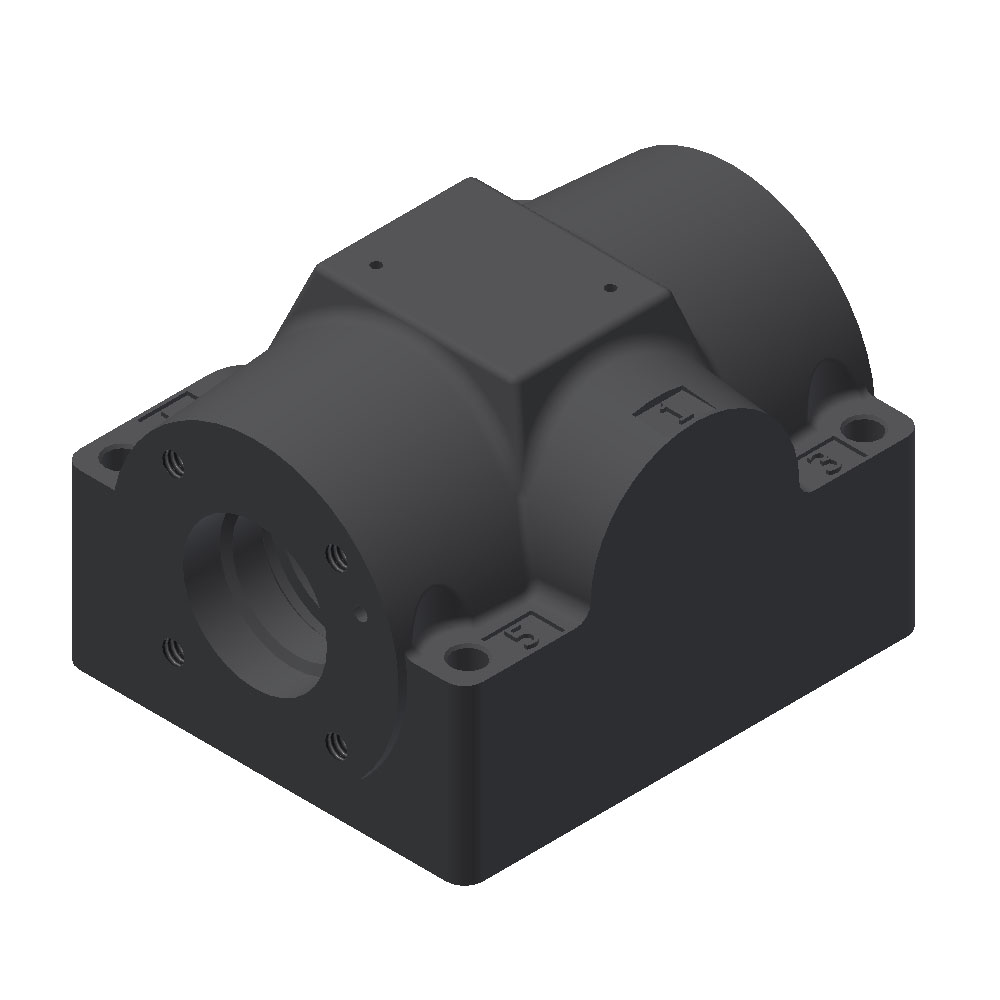

![BP4-1](https://files.aaaproducts.com/pages/images/BP4-1.jpg )
![BP4-1](https://files.aaaproducts.com/pages/images/BP4-1_BTM.jpg )
1/2" Subplate

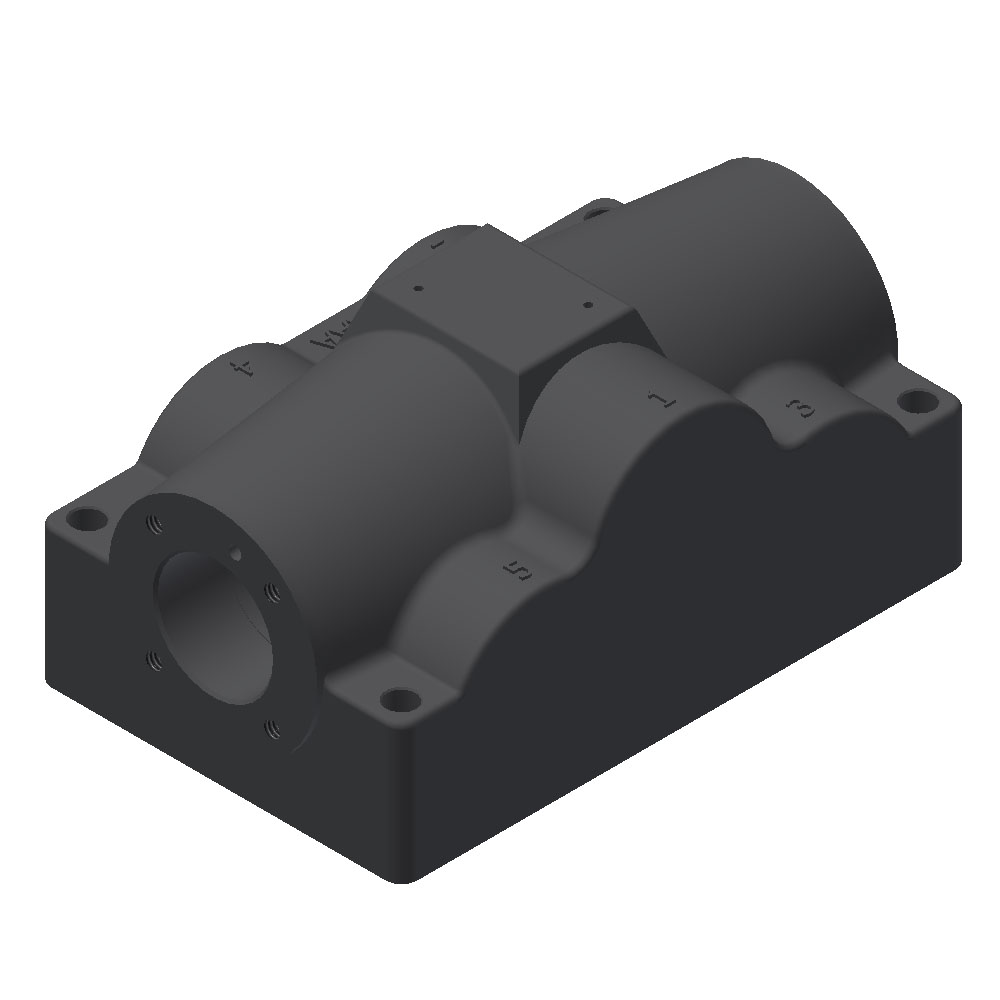

![BP8-1](https://files.aaaproducts.com/pages/images/BP8-1.jpg )
![BP8-1](https://files.aaaproducts.com/pages/images/BP8-1_BTM.jpg )
1" Subplate

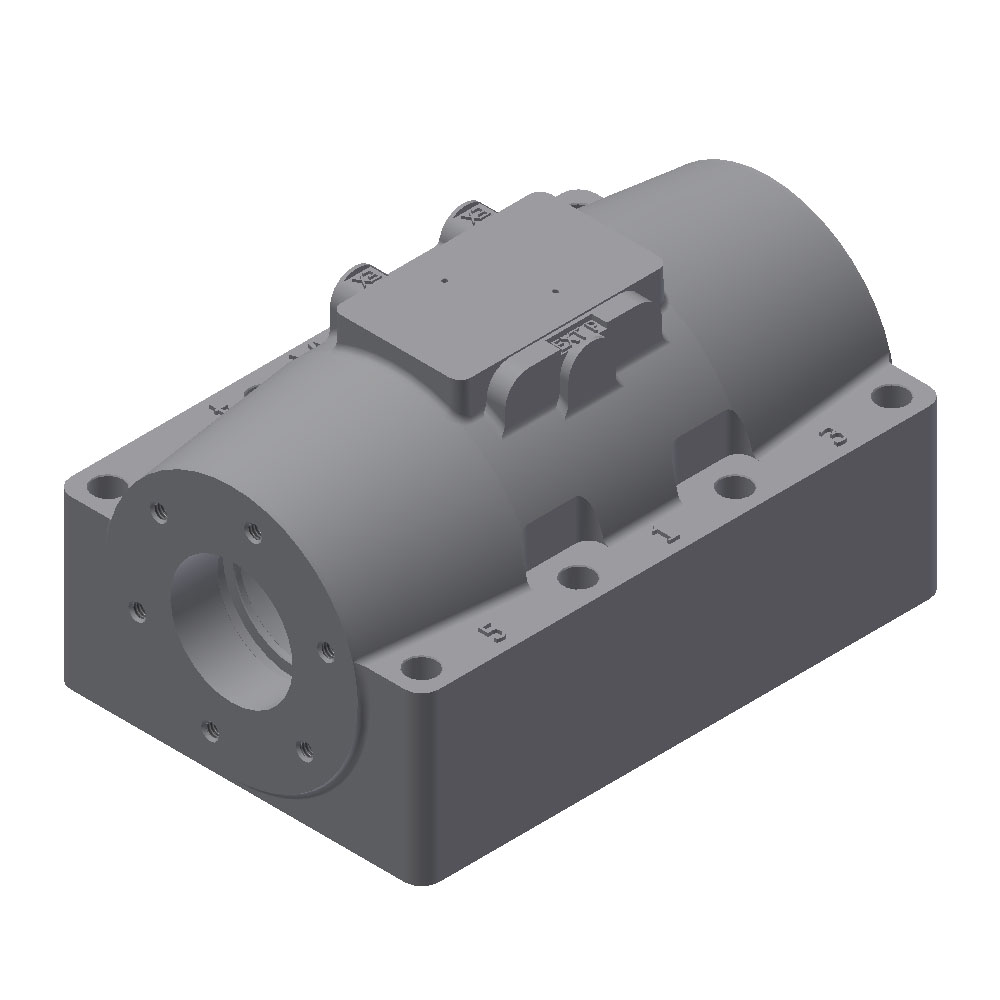

![BP16-2](https://files.aaaproducts.com/pages/images/BP16-2.jpg )
![BP16-2](https://files.aaaproducts.com/pages/images/BP16-2_BTM.jpg )
2" Subplate
