Jiffy Drill

The width of the Jiffy-Drill unit is 3-5/16. But a unit can be specially machined to be as narrow as 3-3/16. When placing two units side by side, the feed cylinder connections of one unit may interfere with the location of the second unit. To accommodate the placing of two units side by side, you can order one unit with feed ports either located on the left (when looking from the spindle to the motor) of the drill unit or on the bottom.

Standard
Standard

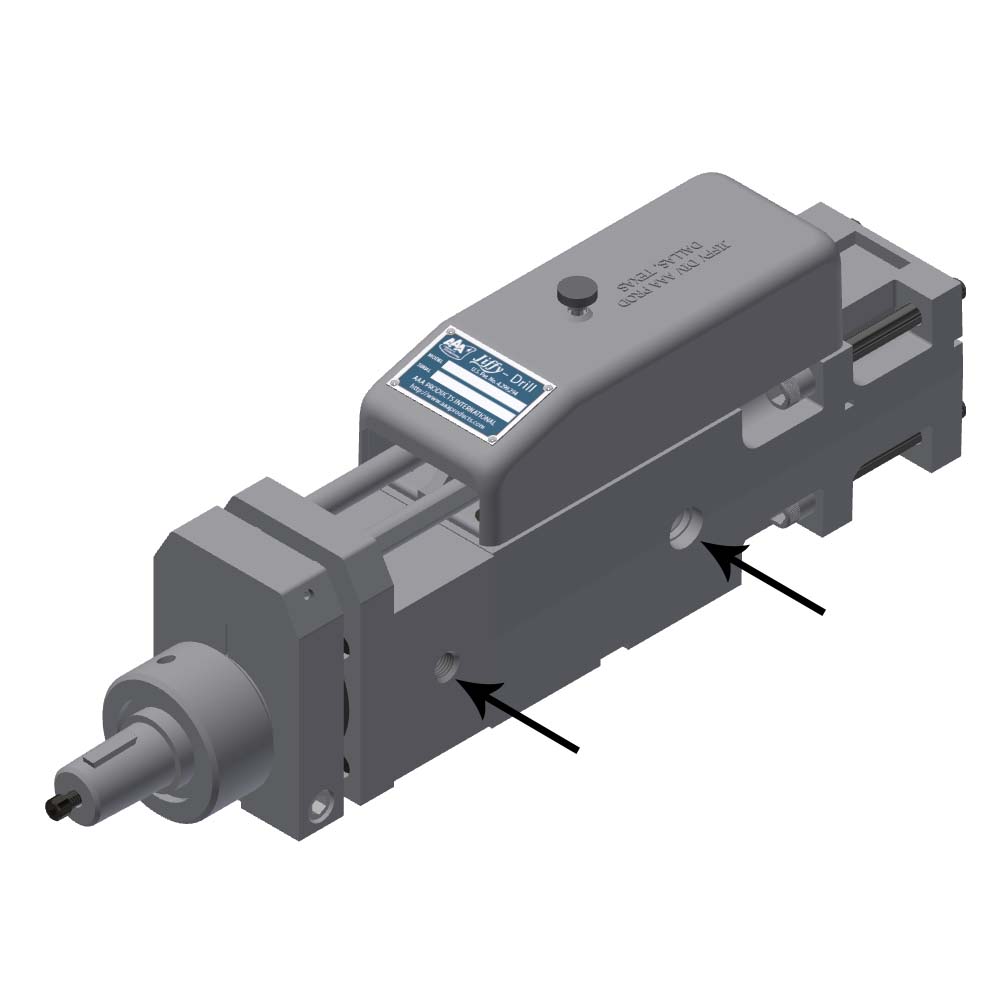

Unit With Standard
Right Side Ports
Optional
Optional
Unit With Optional
Left Side Ports

The width of the Jiffy-Drill unit is 3-5/16. But a unit can be specially machined to be as narrow as 3-3/16. When placing two units side by side, the feed cylinder connections of one unit may interfere with the location of the second unit. To accommodate the placing of two units side by side, you can order one unit with feed ports either located on the left (when looking from the spindle to the motor) of the drill unit or on the bottom.

Standard
Standard
Unit With Standard
Right Side Ports
Optional
Optional
Unit With Optional
Bottom Ports

The motor quick change option allows the rapid changing of hydraulic motors for different torque and RPM. When ordering spare hydraulic motors, you must specify that the motor is equipped with the quick change option. It is also recommended that a spare spindle sleeve is attached to the motor. The swapping of the spindle sleeve between motors is not recommended. The quick change option does not add any length to unit but will increase the width from 3-5/16 to 5-1/8.


Motor

This options pre-wires the unit with an 8-pin connector for rapid wiring of unit. This option allows the rapid connection and disconnection of the unit. Please refer to the Parts document for additional information and wiring color codes. The EP option includes a 12 foot cord.

This options pre-wires the unit with an 8-pin connector for rapid wiring of unit. This option allows the rapid connection and disconnection of the unit. Please refer to the Parts document for additional information and wiring color codes.

The internal stop tube restricts the stroke of the unit. The stroke of the Jiffy-Drill is 3-1/2. By using the depth switch, strokes from 0 to 3-1/2 can be obtained. These depths are not a positive stop. Meaning, as soon as the depth switch is triggered, the control circuit will retract the feed cylinder. The bottom of the hole may not completely clean-up. If you plan on using any kind of dwell circuit, then a positive stop is recommended.

The stroke limiter is a short piece of tube that is placed in the cylinder to reduce the complete stroke of the unit. When ordering this option, please include the desired stroke.
